Capture M6 21.5" Windows POS Terminal (i3)
Product Code: CAPTURE-215-I3
Product Type: Equipment
| Date Checked | 21 May 2025 |
| Availability: | OUT OF STOCK This product is temporarily not available. Sorry, we dont have an expected date as yet. |
| Please see the Similar Products section below or call us on 020 8936 7000 (Intl +44 208 936 7000) or use the Online Enquiry Form for advice. |

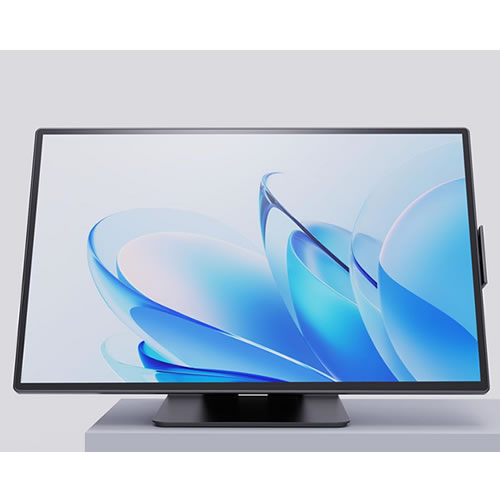

Capture 21.5" Touchscreen POS System
Processor: Intel Core -1215U (10M Cache, up to 4.40 GHz)
Screen Resolution 1920x1080 (16:9)
Memory: 8gb RAM DDR4 3200MHz
Storage: 256gb M.22280 D2-M
2 x RJ50 (RS232 Serial)
4 x USB 2.0, 4 x USB 3.0
1 x RJ45 Gigabit Ethernet
Wifi 802.11a/b/g/n/ac
1 x HDMI
2 x Speaker 2W(Stereo)
1 x Line-out & Mic-in 2-in-1
1 x Cash Drawer Port (RJ11)
Housing: Aluminium Die Casting Alloy

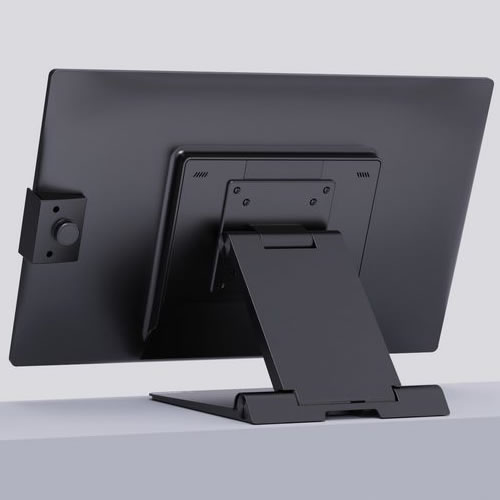

VESA: Supports both 75 x 75 (mm) and 100 x 100 (mm)
Options:
* Reader
* Rear 11.6" Display (Non-touch)
* Rear 11.6" Display (Touch)
* Windows 64-Bit
TecStore Explanation: i3Intel Core i3: the entry level of the Intel Core range. Its specification is more than plenty for standard POS use, card payments and stock control functions and running browser-based cloud POS.
The generation of the processor matters as much as the level: a recent i3 can outperform an older i5, so compare the full model number.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: SSDSSD (Solid State Drive): storage with no moving parts, so it starts up fast, runs silently and copes with knocks far better than a hard disk. Common types:
2.5" SATA - standard drive size, easy to replace.
mSATA - small card used in older compact terminals.
M.2 SATA - slim stick, similar speed to 2.5" SATA.
M.2 NVMe (PCIe) - slim stick, several times faster than SATA.
eMMC - storage chip soldered to the board (tablets, Android devices): cannot be upgraded.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: MSRMagnetic Stripe Reader: a slot on the terminal for swiping cards with a magnetic stripe, such as staff log-in cards, loyalty, membership and gift cards.
Not used for bank card payments, which go through a separate card machine (chip and contactless).
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: 10 IoTWindows 10 IoT Enterprise: the full Windows 10 Enterprise operating system, licensed by Microsoft for fixed-purpose devices such as POS terminals and kiosks, without the consumer apps and interruptions of Windows Home or Pro.
The LTSC 2021 version is supported with security updates until January 2032, so it is not affected by the Windows 10 Home/Pro end of support in 2025. "End of support" is just for Microsoft updates, the operating system will continue to work permanently.
More information ›General guidance – check the specification of the product you choose.
Click PLAY below to watch M6 Modular POS System
| Capture Warranty Duration: | 3 Years Manufacturers Warranty |
| Warranty Type: | Return to Base |
