Digi SM-5300 EV X Touchscreen Scale

The Digi SM-5300 EV X Touchscreen Scale is a modern elevated retail weigh-labeller designed for supermarkets, butchers, delicatessens, fresh food counters, and other demanding retail environments. Combining accurate weighing, a large capacitive operator touchscreen, high-resolution 300 dpi label and receipt printing, and a customer-facing multimedia display, it provides a powerful solution for modern retail weighing and labelling.

The SM-5300 EV X features an elevated 10.1-inch WSVGA capacitive operator touchscreen with 1024 x 600 resolution. Its full touchscreen interface removes the need for a conventional physical keypad and provides operators with a clear, user-friendly interface that displays the functions relevant to each operating mode.

A separate 10.1-inch customer display with 1024 x 600 resolution provides clear transaction information while also supporting native video playback. Retailers can use the customer-facing display for promotional images, personalised content, and dynamic advertisements to increase engagement at the point of sale.

The integrated printer delivers professional 300 dpi output at speeds of up to 150mm per second, subject to the sensitivity of the thermal media used. Standard liner label and receipt media are supported, while a linerless printer with automatic cutter is available as a factory-fitted option for businesses requiring flexible linerless labelling.

Linerless printing provides flexible label lengths while eliminating backing paper, helping reduce waste and simplify media handling. The optional linerless configuration supports roll diameters up to 95mm, while standard liner media supports larger rolls up to 125mm in diameter.

For system integration, the SM-5300 EV X includes Ethernet 10/100 Base-T, four USB 2.0 ports, and an RJ11 interface. Optional Wi-Fi and additional DIGI technologies such as Speed ID, InfoTag, e.Label with Hi-Touch, DIGI Management Console, and Queue Management can further extend the system for advanced retail environments.

Main Features

• Professional elevated retail touchscreen weigh-labeller
• Integrated weighing and label / receipt printing
• 10.1" WSVGA capacitive operator touchscreen
• 1024 x 600 operator display resolution
• 10.1" customer display
• 1024 x 600 customer display resolution
• Full touchscreen operator interface
• Native customer-facing video playback
• Supports promotional images and dynamic advertising
• High-resolution 300 dpi printing
• Print speeds up to 150mm/sec*
• Supports standard liner label and receipt media
• Linerless printer with auto-cutter available as a factory option
• Ethernet 10/100 Base-T
• 4 x USB 2.0 ports
• 1 x RJ11 interface
• Optional wireless connectivity

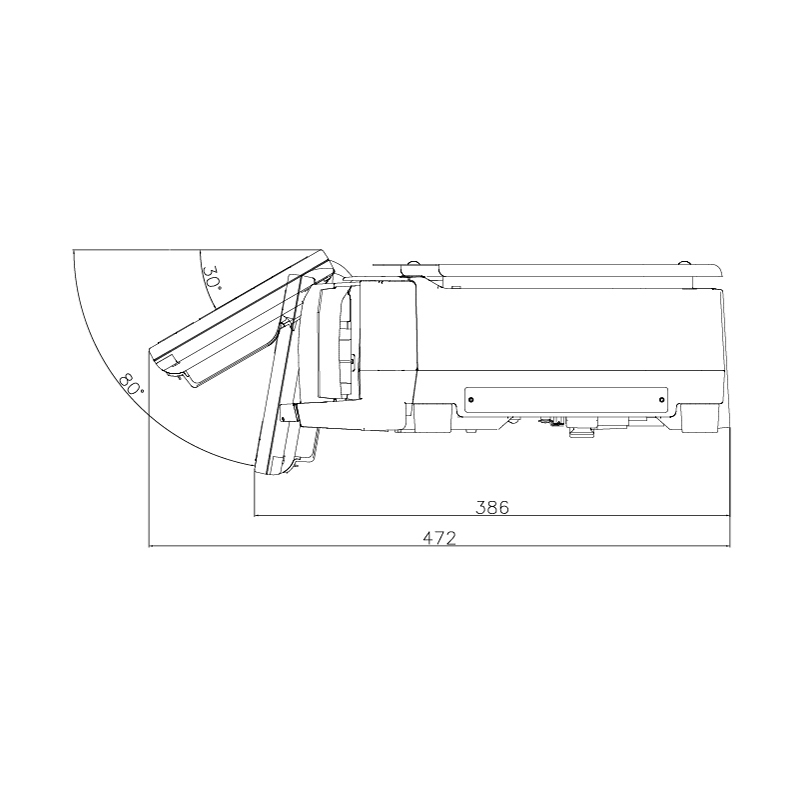

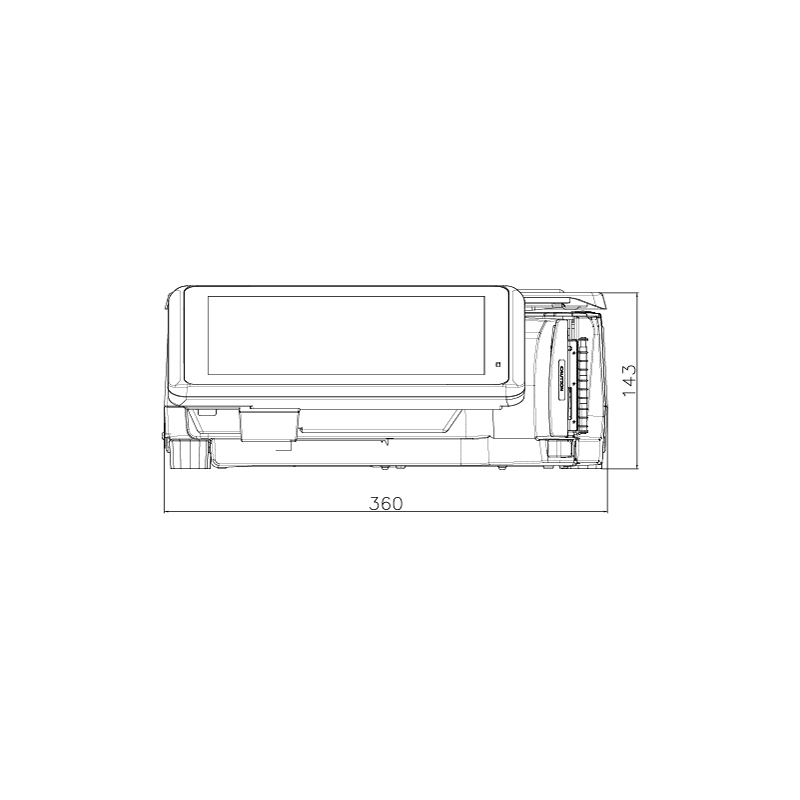

• Dimensions: 360mm (W) x 510mm (D) x 574mm (H)
• Net weight: 13.2kg

Weighing Capacity & Readability

• 3/6kg multi-interval capacity – e = 1/2g
• 6/15kg multi-interval capacity – e = 2/5g
• 15/30kg multi-interval capacity – e = 5/10g

Label & Receipt Printing

• High-resolution 300 dpi printing
• Label and receipt printing capability
• Supports standard liner media
• Linerless printer with auto-cutter available as a factory option
• Printing speeds up to 150mm per second*
• Maximum standard liner roll diameter: 125mm
• Maximum standard liner roll width: 71mm
• Maximum standard liner print width: 60mm
• Maximum linerless roll diameter: 95mm
• Maximum linerless roll width: 62mm
• Linerless printing eliminates backing paper
• Flexible linerless label lengths help reduce the need for multiple media formats

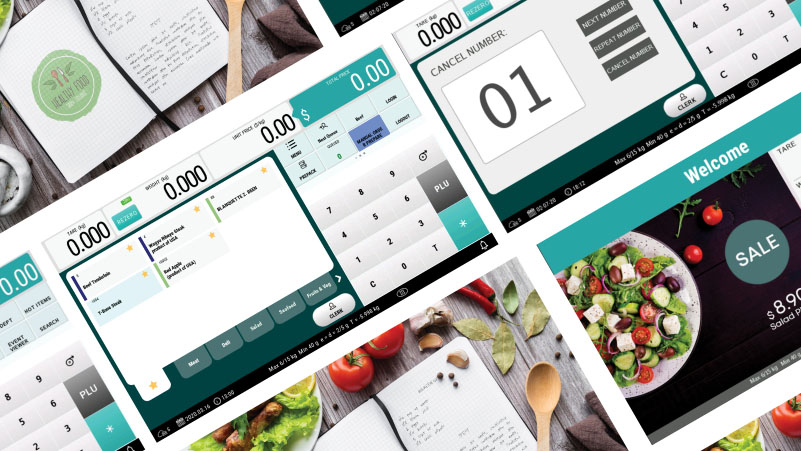

User Interface & Customer Display

• 10.1" capacitive operator touchscreen
• 1024 x 600 operator display resolution
• 10.1" customer-facing display
• 1024 x 600 customer display resolution
• Full touchscreen interface eliminates the need for a physical keypad
• Function-oriented interface displays relevant controls for each operating mode
• Favourites functionality for convenient product access
• Native video playback capability
• Supports personalised promotional content
• Supports dynamic advertisements

DIGI Management Console

• Optional cloud-based management solution
• Remote management of scale data
• Remote label design management
• Scale and printer status monitoring
• Dashboard overview of connected equipment
• Remote access to sales information
• Network-wide configuration support
• Remote software update capability
• Helps reduce unnecessary on-site equipment management

Connectivity & Power

• Ethernet 10/100 Base-T
• 4 x USB 2.0 ports
• 1 x RJ11 interface
• Optional Wi-Fi connectivity
• AC 100/110 or 220/230/240V power support
• 50/60Hz automatic voltage switching
• Operating temperature: -10°C to +40°C
• Operating humidity: 15% to 85% RH

Accessory Options

• Linerless Printer with Auto-Cutter – factory option
• Wi-Fi Module
• Cash Drawer
• Speed ID RFID Staff Login
• e.Label with Hi-Touch electronic price display
• InfoTag electronic shelf labels

Service & Software Options

• Initial Configuration
• On-site Setup & Training
• DIGI Management Console cloud-based management
• Queue Management & Collection System

Advantages Over Other Models

• Elevated display design improves operator and customer visibility
• Large 10.1-inch capacitive touchscreen provides intuitive operation
• 10.1-inch customer display supports multimedia promotional content
• 300 dpi printing provides crisp, professional labels and receipts
• Fast printing up to 150mm/sec supports demanding retail environments
• Optional linerless printing reduces backing-paper waste
• Flexible linerless label lengths improve media efficiency
• Ethernet and multiple USB ports provide flexible system integration
• Expandable DIGI technologies support advanced retail applications

Best Suited For

• Supermarkets
• Butchers
• Delicatessens
• Fresh food counters
• Greengrocers
• Bakery counters
• Cheese and speciality food retailers
• Retail environments requiring professional weighing and label printing

Product Summary

The Digi SM-5300 EV X Touchscreen Scale is a modern elevated retail weigh-labeller combining accurate weighing, large touchscreen operation, high-resolution printing, and customer-facing multimedia functionality in one professional system.

With a 10.1-inch capacitive operator touchscreen, 10.1-inch customer display, 300 dpi printing, speeds of up to 150mm per second, Ethernet, four USB 2.0 ports, RJ11 connectivity, optional linerless printing with auto-cutter, and expandable DIGI retail technologies, the SM-5300 EV X provides a comprehensive solution for modern supermarket and fresh-food environments.

*Maximum printing speed is subject to the sensitivity of the thermal media used. Optional accessories and services may vary by configuration.
