Aures JAZZ 15" POS Terminal
Product Code: JAZZ
Product Type: Equipment

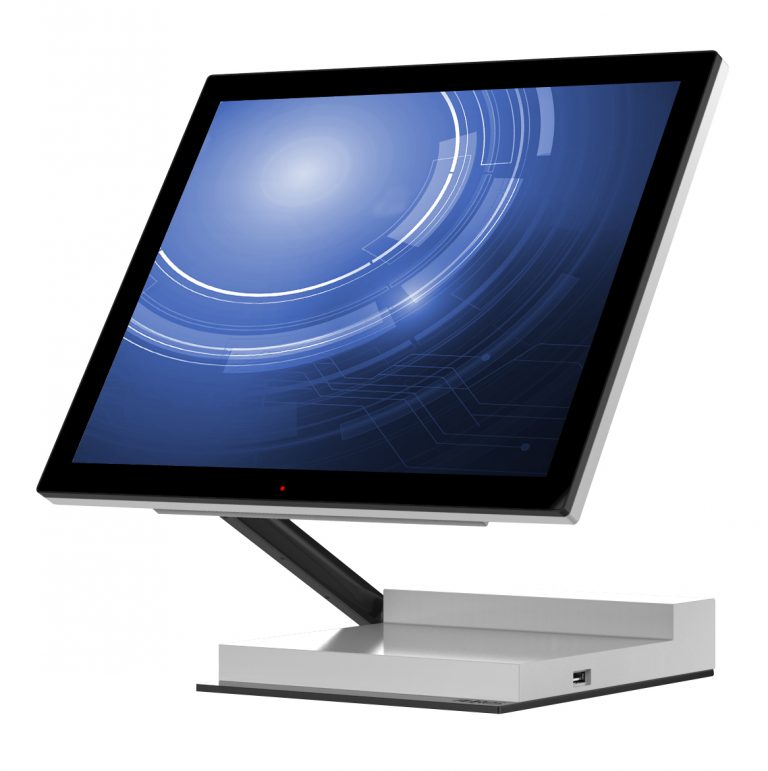

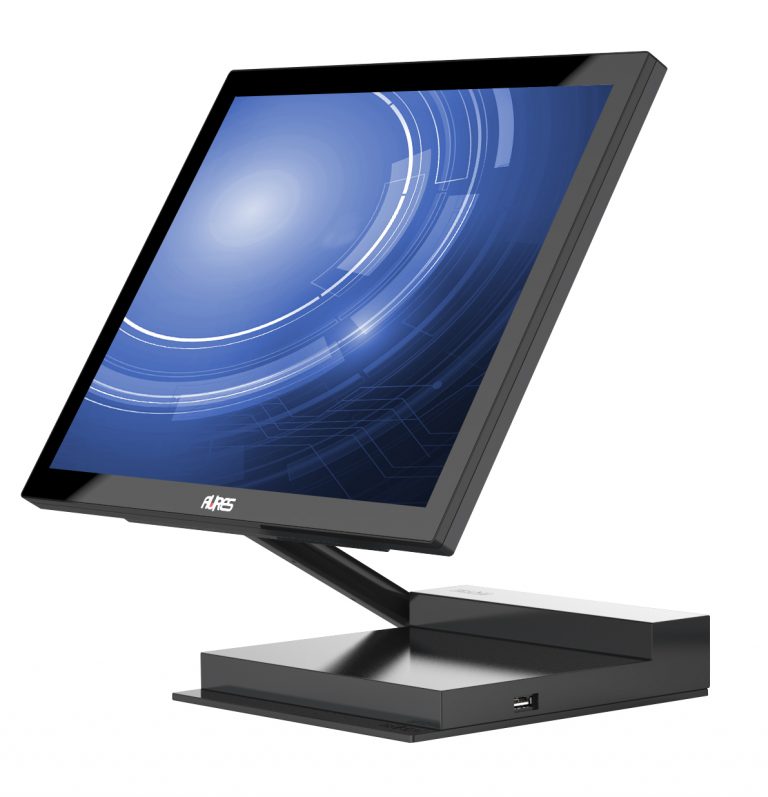

The Aures JAZZ is a a revolutionary new concept in POS hardware design.

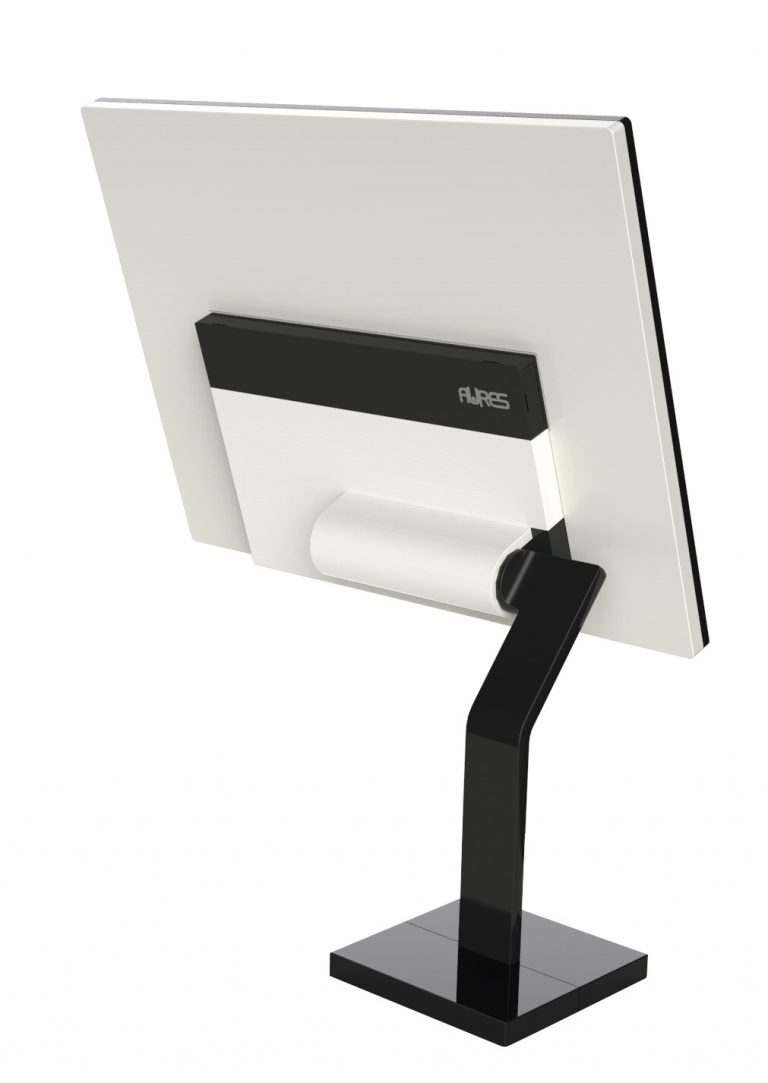

Available as a classic EPOS terminal, pole mounted (JAZZPOLE) or a Self-Check-Out Kiosk (JAZZSCO), this versatile hardware solution lends itself to a myriad of platforms.
FORM:
The attractive āZā shape cast aluminium and zinc structure gives it strength and resilience and has the added benefit of optimum cooling when being used in the classic EPOS terminal position.

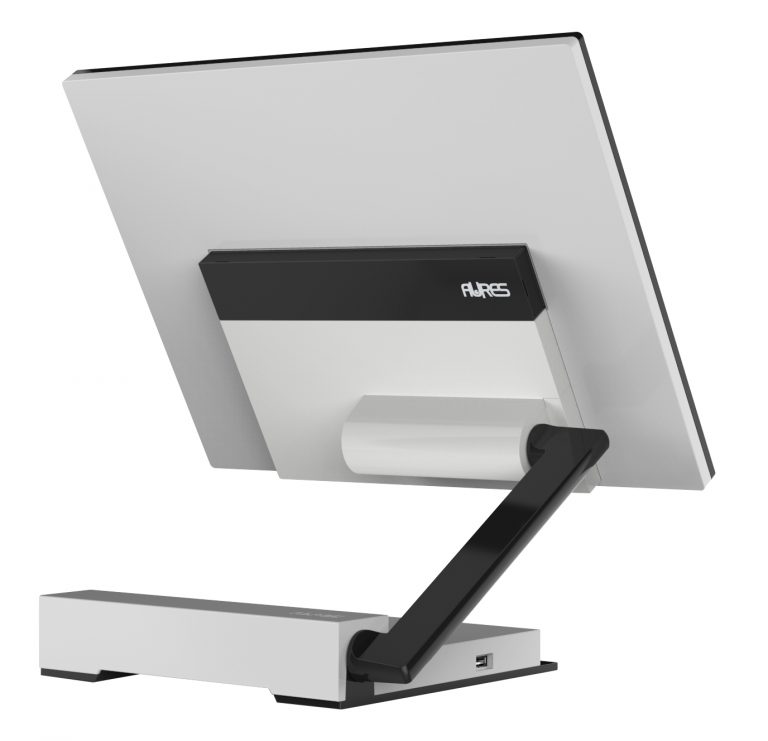

The double hinge design of the PCT Windows compatible touch screen allows for ease of height and angle adjustment right through to a completely flat position thus catering for all needs.
The small footprint of the JAZZ means that it fits into the smallest of areas on the sales counter and so optimises the tightest of spaces.
PROCESSOR OPTIONS:
The motherboard of the JAZZ range supports four types of powerful, mobile and fanless embedded processors, namely the Intel range of processors, , 3965U, and thus futureproofing the JAZZ as the technology advances.
Using a clever drop and slide technique, the processor module can be replaced in a matter of seconds without the need for any tools, simply unclip the back cover and slide out the processor module.

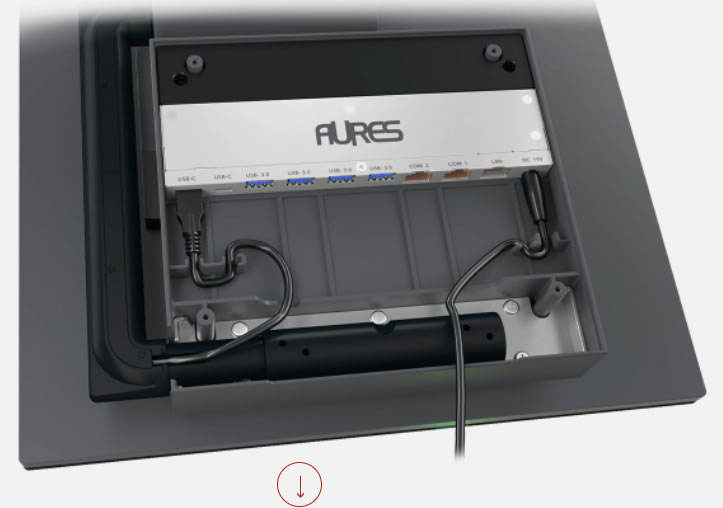

CABLE TIDY:
The JAZZ incorporates new technology of connectivity using a single USB-C cable, which is more than capable of conducting multiple functions including power, USB and video data.
DISPLAY;
15" PCAP Edgeless touchscreen, ultra-thin only 13mm thick.
Aures JAZZ - Main Features:
* , 3965U, or Processor choice
* Black or White casing choice
* 15" (4:3) PCAP Touchscreen
* 4gb RAM (upgradable to 8gb on / 3965U, 16gb on /)
* 128gb (Upgradable to 256gb SSD)
* Windows 64-bit
Aures JAZZ - Optional Peripherals:
* Bluetooth Scanner for JAZZ
* Integrated Rear 2-Line Customer Display (in black only)
* Integrated Rear 10-inch Graphical Customer Display (in black only)
* Reader
* Fingerprint Sensor
* /ikey Reader
* RFID Reader
* Nano CLE USB WiFi Bluetooth option
* USB C Cable 1.5m
* Pole Mount with Pole Fixing Kit
* Aures ODP333 Printer (in black or white)
* 3S430 Cash Drawer (in black or white)
Please call for Kiosk model
Click PLAY below to watch the Aures JAZZ video presentation
TecStore Explanation: J1900Intel Celeron J1900 processor (Bay Trail, launched 2013): 4 cores, 2.0GHz rising to 2.42GHz, 2MB cache, low 10W power. Supports up to 8GB DDR3L RAM.
An older, proven chip that runs simple POS software well. Not supported by Windows 11; for heavier or newer software choose a more recent processor.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: i3Intel Core i3: the entry level of the Intel Core range. Its specification is more than plenty for standard POS use, card payments and stock control functions and running browser-based cloud POS.
The generation of the processor matters as much as the level: a recent i3 can outperform an older i5, so compare the full model number.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: i5Intel Core i5: the mid level of the Intel Core range. More cores and speed than an i3: smooth with busy POS, back office, kitchen screens and several programs at once.
The generation matters too: compare the full model number, e.g. i5-1145G7E.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: SSDSSD (Solid State Drive): storage with no moving parts, so it starts up fast, runs silently and copes with knocks far better than a hard disk. Common types:
2.5" SATA - standard drive size, easy to replace.
mSATA - small card used in older compact terminals.
M.2 SATA - slim stick, similar speed to 2.5" SATA.
M.2 NVMe (PCIe) - slim stick, several times faster than SATA.
eMMC - storage chip soldered to the board (tablets, Android devices): cannot be upgraded.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: 10 IoTWindows 10 IoT Enterprise: the full Windows 10 Enterprise operating system, licensed by Microsoft for fixed-purpose devices such as POS terminals and kiosks, without the consumer apps and interruptions of Windows Home or Pro.
The LTSC 2021 version is supported with security updates until January 2032, so it is not affected by the Windows 10 Home/Pro end of support in 2025. "End of support" is just for Microsoft updates, the operating system will continue to work permanently.
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: MSRMagnetic Stripe Reader: a slot on the terminal for swiping cards with a magnetic stripe, such as staff log-in cards, loyalty, membership and gift cards.
Not used for bank card payments, which go through a separate card machine (chip and contactless).
More information ›General guidance – check the specification of the product you choose.
TecStore Explanation: DallasDallas key (iKey / iButton): staff log in by touching a small coded key fob on the reader, instead of typing a code.
Quick and secure: every sale, refund and void is recorded against the right member of staff.
General guidance – check the specification of the product you choose.
Processor- Intel Core i3 -7100U
- Intel Core i5 -7300U
- J1900
Rear Display- 10" LCD Graphic Display
- 2-Line Character Display
- Not Required
Please mention the options you need when you ask for your quote.
